The full story
What is a bucket wheel excavator?

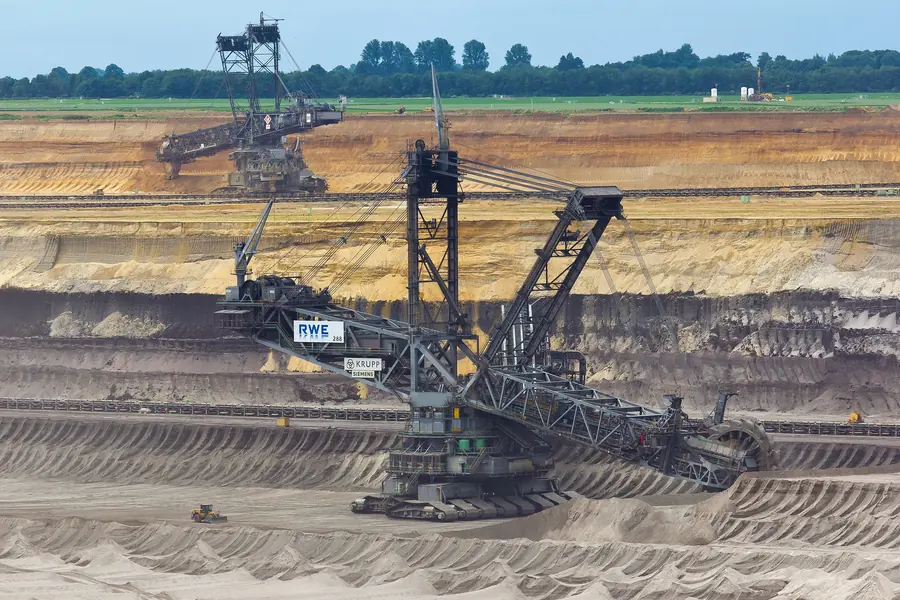

A bucket wheel excavator (BWE) is a continuous digging machine. A rotating wheel fitted with buckets sits at the end of a long boom. As the wheel turns and the boom slews sideways, each bucket cuts a slice of material from the face and empties it onto a conveyor belt inside the boom. The belt carries the material back through the machine to a discharge boom and onto the mine's conveyor system. Unlike a shovel or an excavator loading trucks, the machine never stops to wait.
Bagger 293 and Bagger 288

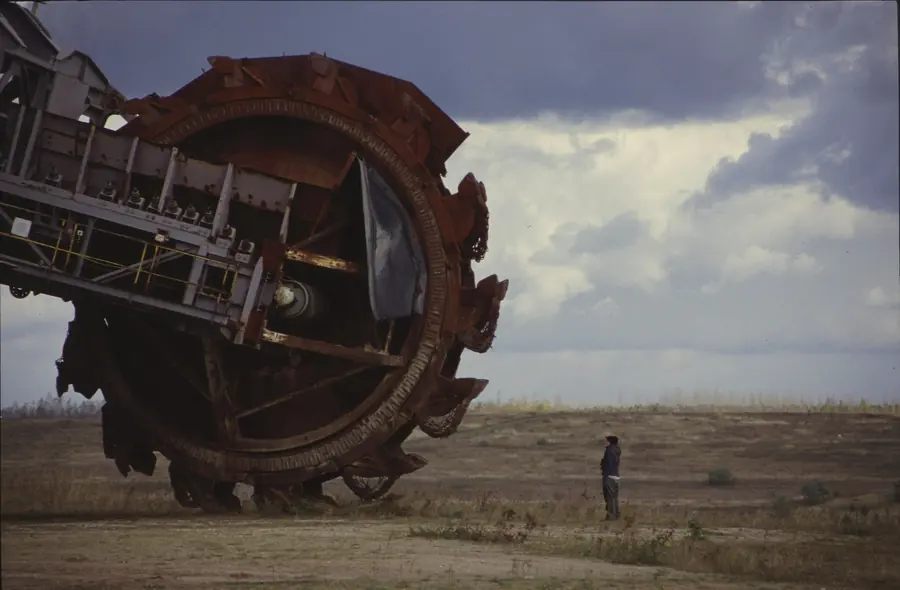

The largest bucket wheel excavators were built for the Rhineland lignite mines of RWE (formerly Rheinbraun) west of Cologne. Bagger 288 was completed by Krupp in 1978 for the Hambach mine. Bagger 293, built by TAKRAF in Leipzig and delivered in 1995, is listed by Guinness World Records at 14,196 tonnes as the heaviest machine that can move under its own power. Both are about 96 m tall; published lengths range from 220 m to 225 m. Their wheels are about 21 m across, with 18 buckets, and each can move about 240,000 cubic metres of material a day. They are powered from the grid by cable; Bagger 288's rated power is about 16.56 MW.
In 2001 Bagger 288 was driven 22 km from Hambach to the Garzweiler mine, crossing the A61 motorway, the river Erft and a railway. The trip took about three weeks and cost nearly 15 million German marks, still less than dismantling and rebuilding it.
How a lignite mine is laid out

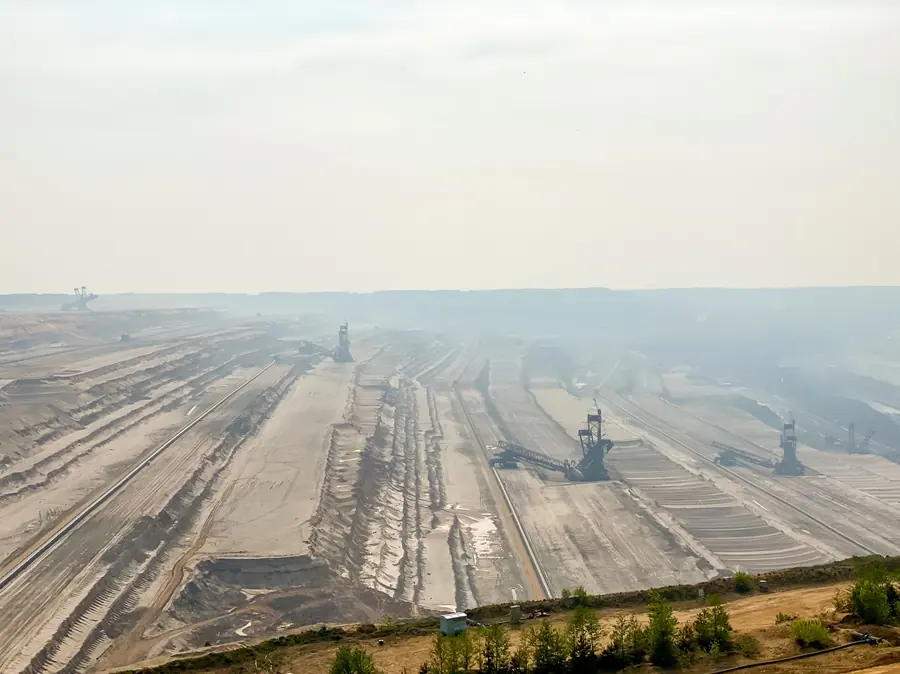

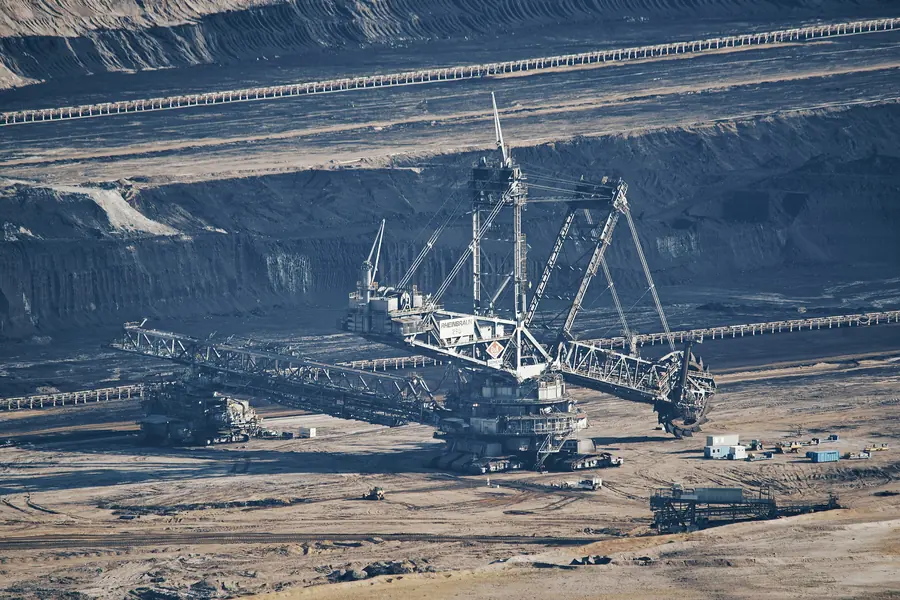

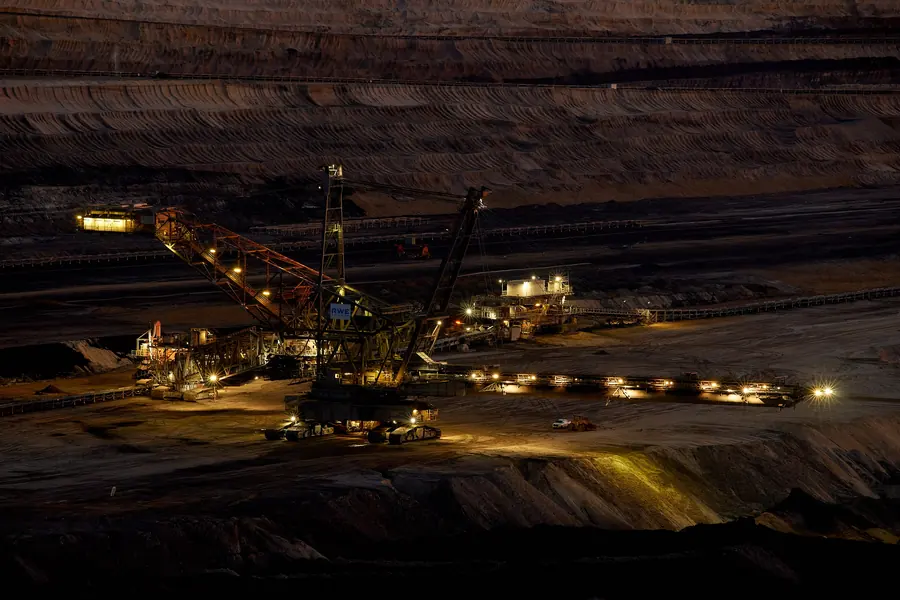

A large lignite pit is worked in benches, each with its own excavator and conveyor. Overburden, the sand, gravel and clay above the coal, is carried round the pit by belt to spreaders that tip it on the side already mined out, where the land is shaped and replanted. Coal goes to bunkers and is sent by rail or belt to nearby power stations, because lignite holds too much water and too little energy to be worth shipping far. The result is a pit that moves across the landscape over decades.
Hambach and the forest

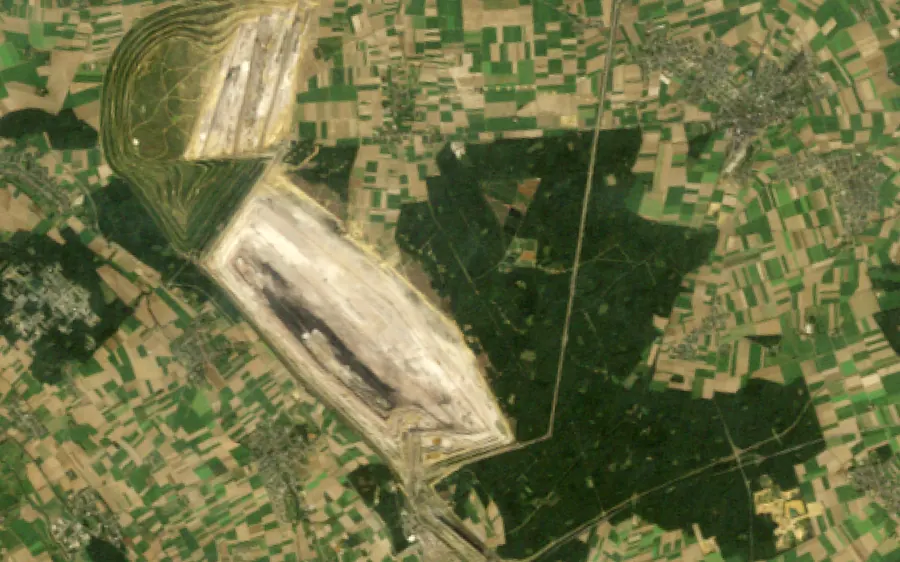

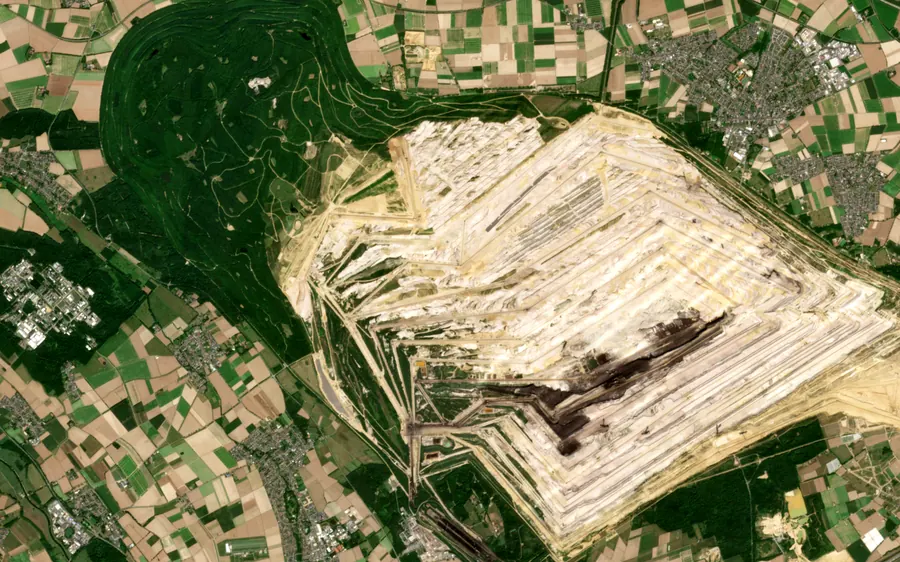

Hambach is Germany's deepest open-pit mine: NASA's Earth Observatory puts its floor at almost 300 m below sea level, and its working area at about 44 km². As it advanced it cleared most of the Hambach Forest, an ancient woodland that once covered about 4,000 hectares; only a few hundred hectares remain. Protest camps in the forest became a national symbol, and on 5 October 2018 the higher administrative court in Münster stopped further clearing while a legal challenge was heard. The remaining forest was later kept under Germany's coal phase-out law. RWE says coal extraction at Hambach will end in 2029, and the pit is planned to become a lake.
The 2030 coal exit
In October 2022 RWE, North Rhine-Westphalia and the federal government agreed to bring forward the end of lignite power and mining in the Rhineland by eight years, to 2030. Garzweiler's planned output was roughly halved, so five villages and three farmsteads will stay; the hamlet of Lützerath was demolished in January 2023 because the coal beneath it was needed during the energy crisis. German lignite output, 433 million tonnes in 1985, was about 91.9 million tonnes in 2024 (D-EITI).
Where else bucket wheels work

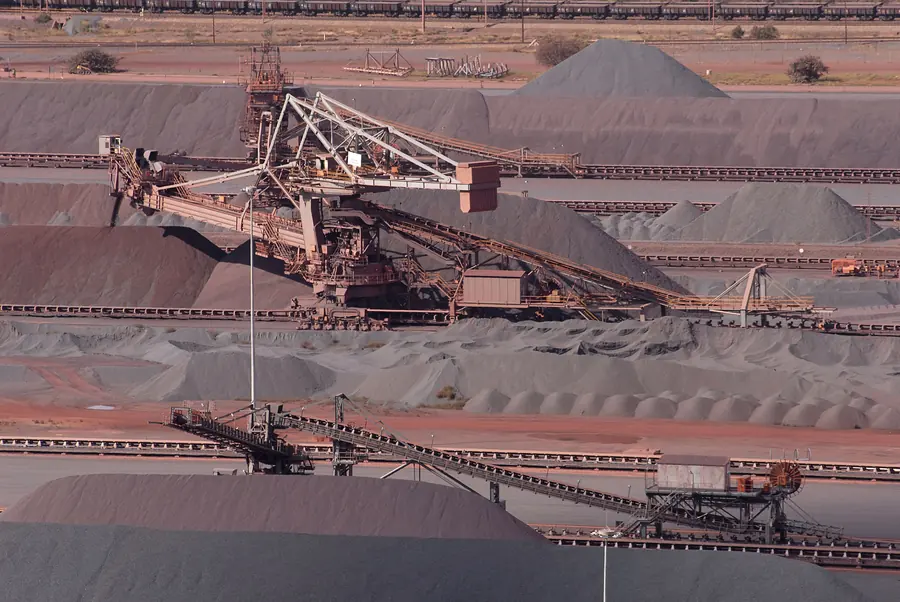

Bucket wheel excavators are used where large volumes of soft material lie in flat layers: lignite in Germany, Poland, the Czech Republic, Serbia, Bulgaria, Greece and Turkey; brown coal in Australia's Latrobe Valley; lignite at Neyveli in India; and coal at Ekibastuz in Kazakhstan. They cannot dig hard rock, so metal mines, which drill and blast, use shovels, hydraulic excavators and trucks. The bucket wheel itself is common far beyond mining pits, on the stacker-reclaimers that build and recover stockpiles of iron ore, coal and bauxite at mines and ports.
What the giants teach
- Continuous beats batch when the ground allows it. Belts and wheels move soft material more cheaply than trucks, which is why the same idea is spreading in hard-rock mines as in-pit crushing and conveying.
- Scale locks you in. A machine built for one deposit and one power station is hard to repurpose when policy or markets change.
- Licence to operate matters. Hambach's forest and Lützerath show that land use, not engineering, now sets the limits of big mines.
More on the machines: all mining equipment. On the mines behind them: the largest mines in the world and mining in Germany.
Questions people ask
What is the biggest bucket wheel excavator?
Bagger 293, built by TAKRAF in Leipzig in 1995 and working at RWE's Hambach mine in Germany. Guinness World Records lists it at 14,196 tonnes, the heaviest machine that can move under its own power. It is about 225 m long and 96 m tall.
How does a bucket wheel excavator work?
A wheel of about 18 buckets turns on the end of a long boom. As the machine slews the boom sideways, each bucket cuts a slice from the face and tips it onto a conveyor belt inside the boom. The belt carries the material back through the machine to a system of conveyors, so digging never stops to wait for trucks.
How much can Bagger 288 dig in a day?
About 240,000 cubic metres of earth or coal a day, the figure given for both Bagger 288 and Bagger 293. That is roughly a cube 62 m on each side, or about 96 Olympic swimming pools.
Why are bucket wheel excavators used for lignite?
Lignite and the sands and clays above it are soft enough to cut without blasting, and the seams lie in thick, flat layers over huge areas. A continuous excavator feeding belts moves that soft material more cheaply than shovels and trucks. In hard rock, which has to be blasted first, they do not work.
What happened to the Hambach Forest?
The Hambach mine expanded east through the Hambach Forest for decades, and only a few hundred hectares of an ancient forest of about 4,000 hectares remain. In October 2018 a court halted further clearing, and Germany's coal exit law later kept the remaining forest. Mining at Hambach is due to end in 2029.
Who makes bucket wheel excavators?
The biggest German machines were built by Krupp (now part of FLSmidth, which bought thyssenkrupp's mining business in 2022) and TAKRAF of Leipzig. Few new giant excavators are ordered today, but the same wheel is used on stacker-reclaimers at ore and coal stockyards worldwide.
